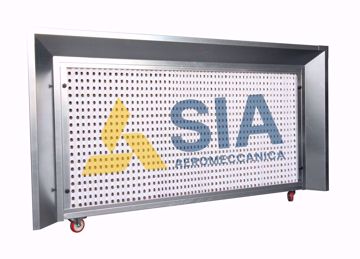

Dry painting booth model VS EVO, covering and perimetral structure wholly made in sandwich panels thickness 40mm.
This particular structure allows a reduction of 50% on the assembly and maintenance times. Filters's adsorption capacity has been doubled increasing the aspiration capacity too. The central panel with Andreae is easly removable, allowing to arrive to the filtering group on the back.
Water based painting booth series MINI ECO
Made of galvanized sheet iron (not painted)
Capacity: 2000 mc/h - Power: 0.75 HP - Dimensions: 1060x1030xH1950
Water based painting booth series ECO 20
Made of galvanized sheet iron (not Painted) - For Internal
-Dimensions: 2000x1500x3250 mm - Power 1.5 kw - Capacity 8000 mc/h
Water based painting booth series ECO 30
Made of galvanized sheet iron (not Painted) - For Internal
-Dimensions: 3000x1500x3250 mm - Power 2.2 kw - Capacity 11000 mc/h
Water based painting booth series ECO 40
Made of galvanized sheet iron (not Painted) - For Internal
-Dimensions: 4000x1500x3250 mm - Power 4 kw - Capacity 15000 mc/h
Water based painting booth series ECO 50
Made of galvanized sheet iron (not Painted) - For Internal
-Dimensions: 5000x1500x3250 mm - Power 5.5 kw - Capacity 22000 mc/h
Dry painting booth series VS ECO-N 40 (with No active carbon)
Made of galvanized sheet iron (not painted)
-Dimensions: 4000x1050x2900 mm - Power 4 kw - Capacity 15000 mc/h
Dry painting booth series VS 20 with active carbon
Made of galvanized sheet iron (not painted)
-Dimensions: 2000x1050x3100 mm - Power 1.5 kw - Capacity 8000 mc/h
Dry painting booth series VS 20 SCP (with No active carbon cartridges)
Made of galvanized sheet iron (not painted)
-Dimensions: 2000x1050x3100 mm - Power 1.5 kw - Capacity 8000 mc/h
Dry painting booth series VS 30 with active carbon
Made of galvanized sheet iron (not painted)
-Dimensions: 3000x1050x3100 mm - Power 2.2 kw - Capacity 11000 mc/h
Dry painting booth series VS 40 SCP (with No active carbon cartridges)
Made of galvanized sheet iron (not painted)
-Dimensions: 4000x1050x3100 mm - Power 4 kw - Capacity 15600 mc/h
Dry painting booth series VS 40 with active carbon
Made of galvanized sheet iron (not painted)
-Dimensions: 4000x1050x3100 mm - Power 4 kw - Capacity 15600 mc/h
Dry painting booth series VS 50 with active carbon
Made of galvanized sheet iron (not painted)
-Dimensions: 5000x1050x3100mm - Power 5.5 kw - Capacity 16500 mc/h
Dry painting booth series VS 50 with active carbon
Made of galvanized sheet iron (not painted)
-Dimensions: 5000x1050x3100mm - Power 5.5 kw - Capacity 16500 mc/h
Dry painting booth series VS ECO-N 20(with No active carbon)
Made of galvanized sheet iron (not painted)
-Dimensions: 2000x1050x2900 mm - Power 2.2 kw - Capacity 8000 mc/h
Dry painting booth series VS ECO-N 30 (with No active carbon)
Made of galvanized sheet iron (not painted)
-Dimensions: 3000x1050x3100 mm - Power 2.2 kw - Capacity 11000 mc/h
Dry painting booth series VS ECO-N 50 (with No active carbon)
Made of galvanized sheet iron (not painted)
-Dimensions: 5000x1050x3100mm - Power 5.5 kw - Capacity 16500 mc/h
